How to install the Xer CP305 series toner chip?
1-Installation method of Xerox cp305 toner chip,Currently differentiated by performance
There are two types of chips-One is dedicated by color | One is four-color universal
1.Color chips,Need to confirm what color the toner is,Then install the chip according to the color
2.Four-color universal chips don’t need to separate by colors,Can be installed at will
2.There are two types of chips

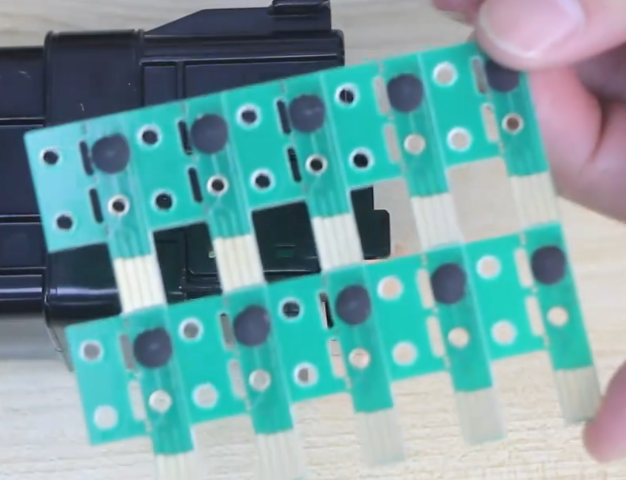

1.One is rectangular like this
（Step 1）

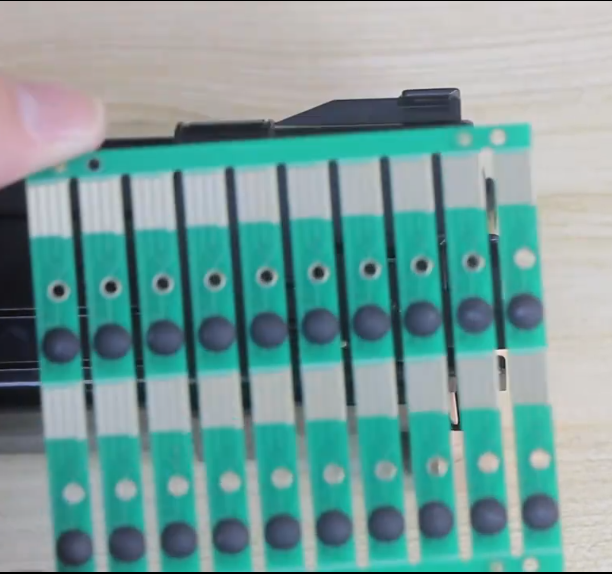

2.One is such that there is a gap
（Step 2）
3-Detailed process：

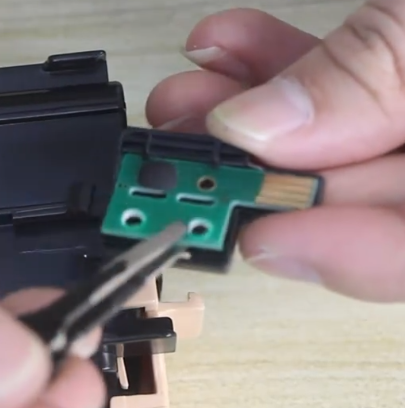

1.First find the location of the old chip,Pry the slot off,Remove the old chip from the slot
（Step 1）
（Step 2）

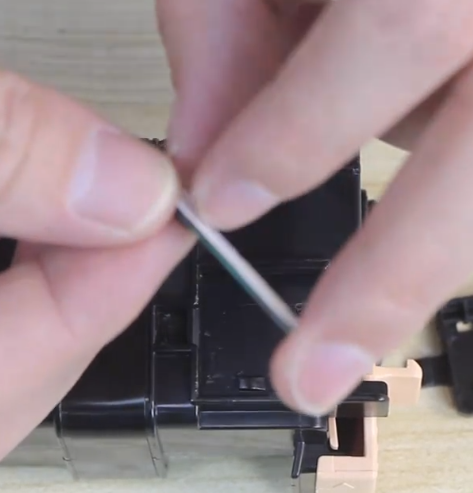

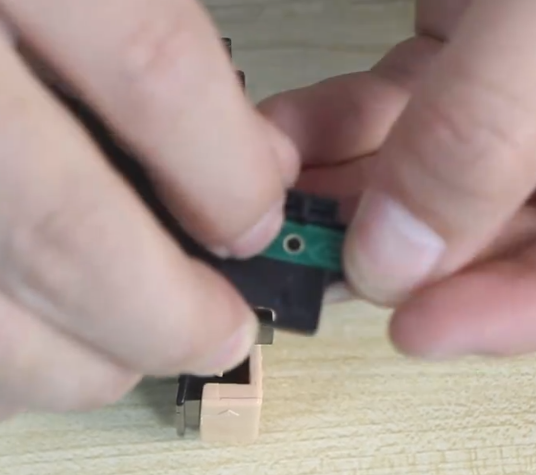

2.Paste some double-sided tape on the back of the chip,After tearing off the tape,Chip contacts facing outward,Paste the chip on the positioning cover,

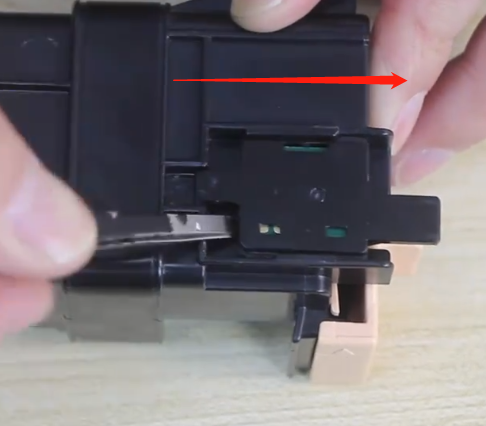

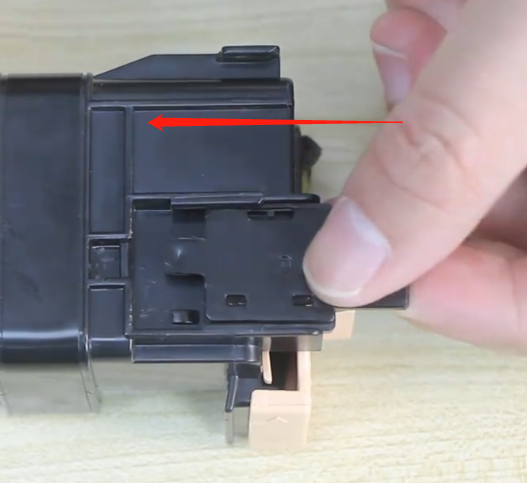

press it tight like this,Then turn the positioning cover of the chip over,Follow this slot Push until the position is locked
（Step 1）
（Step 2）
（Step 3）
Note:The chip is installed.
3-To learn more about the installation steps
Please see the video below：
