Imaging unit life expired, error“C3-6140”
HomenewTechnology and SupportAnalysis of chip common problems
Imaging unit life expired, error“C3-6140”
Imaging unit life expired, error“C3-6140”
2023-05-11
Today we'll take a look at the HP 150A printer,Solution when report“C3-6130/C3-6140” error code
The reason for this error code is,The lifetime of the imaging unit has come to an end
When the imaging unit is already in a low state“C3-6110” error code will be reported,
When the life of the imaging unit needs to be replaced A“C3-6130/C3-6140” error code will be reported
The solution is as follows:
1.If the imaging unit of the printing effect is good, then only need to replace a drum chip

(Step 1)
The method of changing the drum chip is as follows:

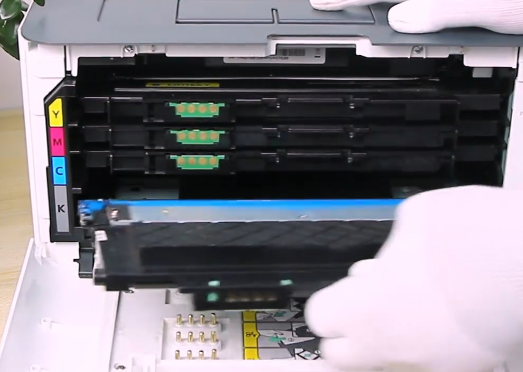

1.In the shutdown state, open the front cover door, find the drum chip location

(Step 2)

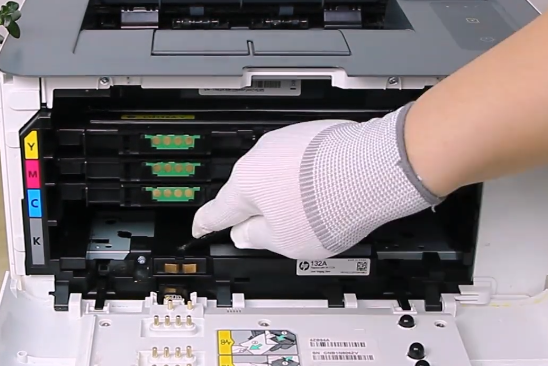

2.Take out the black toner first,Then use tweezers to pry the old drum chip

(Step 3)

(Step 4)

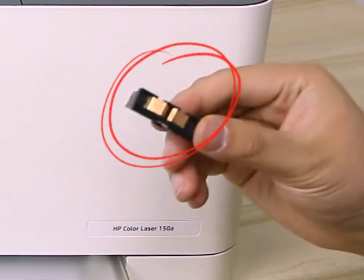

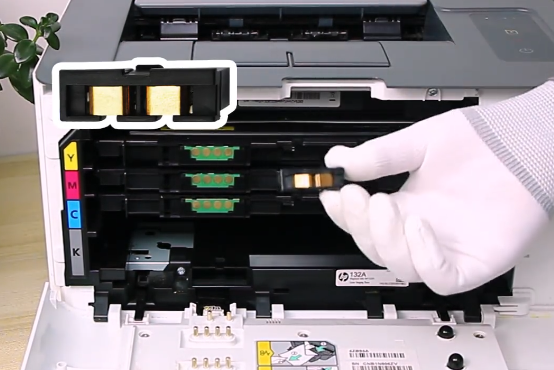

3.take out the old chip,replace a new JYD drum chip

(Step 5)
4.Now let's take a look at the supplies test page,With the new chip, it says“100% .”

(Step 6)
Learn more about official consultation and chip features
