Ricoh copier C2011 how to check the chip remaining capacity?

Ricoh copier C2011 how to check the chip remaining capacity?

2023-07-21
When Ricoh MPC2053 universal compatible chip is used in C2011 copier
How to check the remaining capacity of the chip？


There are two ways for us to check the remaining capacity of the Ricoh C2011 machine:
Method 1. You can query directly on the screen
Method 2. You can view it by printing the configuration page

So let's see how these two methods work

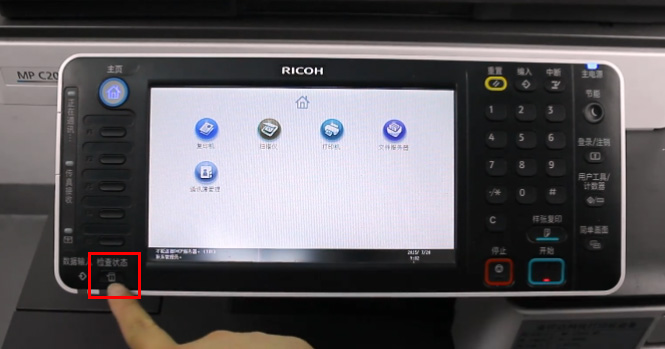

1.How to check the capacity on the display screen，First display the interface on the machine home page,Press the "Check Status" button on the machine's operator panel


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 1）

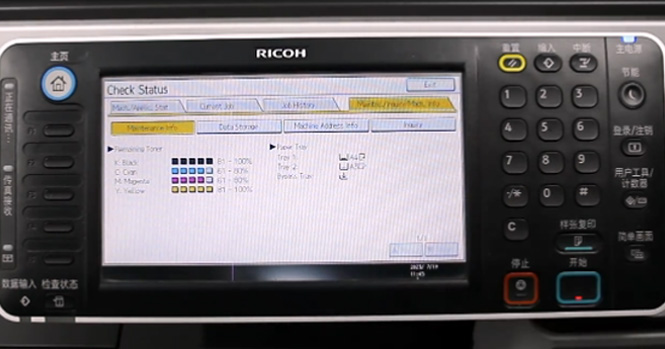

2.Click on the "Repair/Inquiry/Maintenance Information" column on the screen，Now the remaining toner information and status are displayed under the "Maintenance Information" column


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 2）

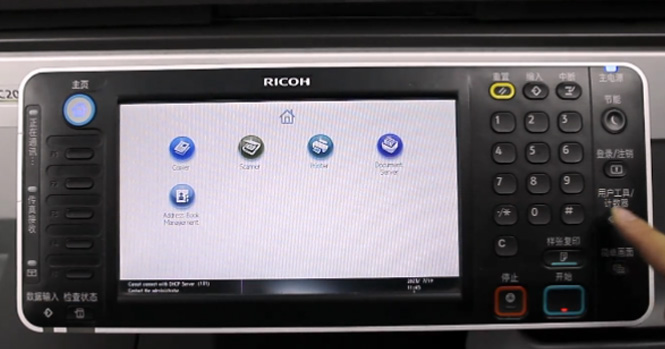

3.How to Print a Configuration Page to View，First, display the interface on the home page of the machine，Press the User Tools/Counter button on the machine's operator panel


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 3）

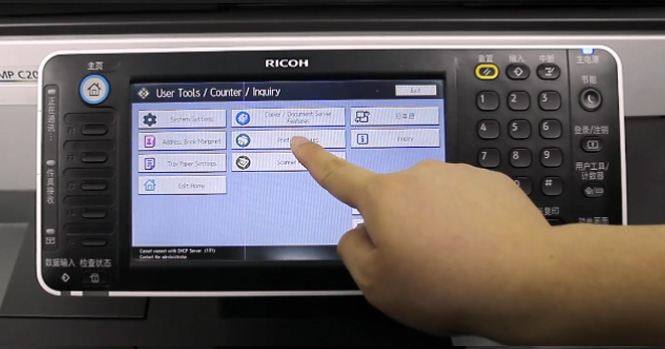

4.Then the screen will switch to the "User Tools/Counters/Query" interface，Click the "Printer Features" button on the screen


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 4）
5.On the "Printer Features" screen,Click the "Configuration Page" button under the "List/Test Printer" column,The machine will print a configuration page


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 5）

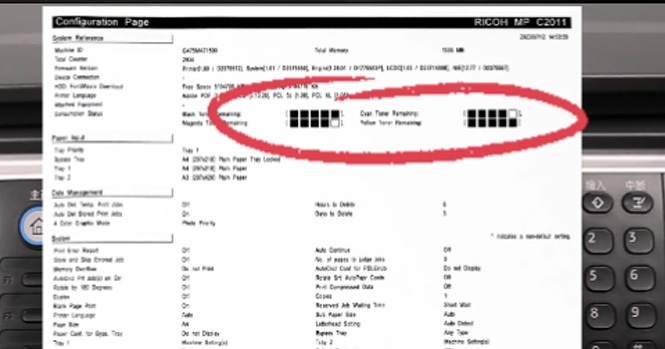

6.After printing is complete, the position on the configuration page shows the remaining powder information


                                                                                            Ricoh,C2011,Ricoh Copier,Universal Chip,Remaining powder Amount

（Step 6）

Please see the video below：
