What do we need to pay attention to when Ricoh C2011 copier use compatible chips?
2023-07-17

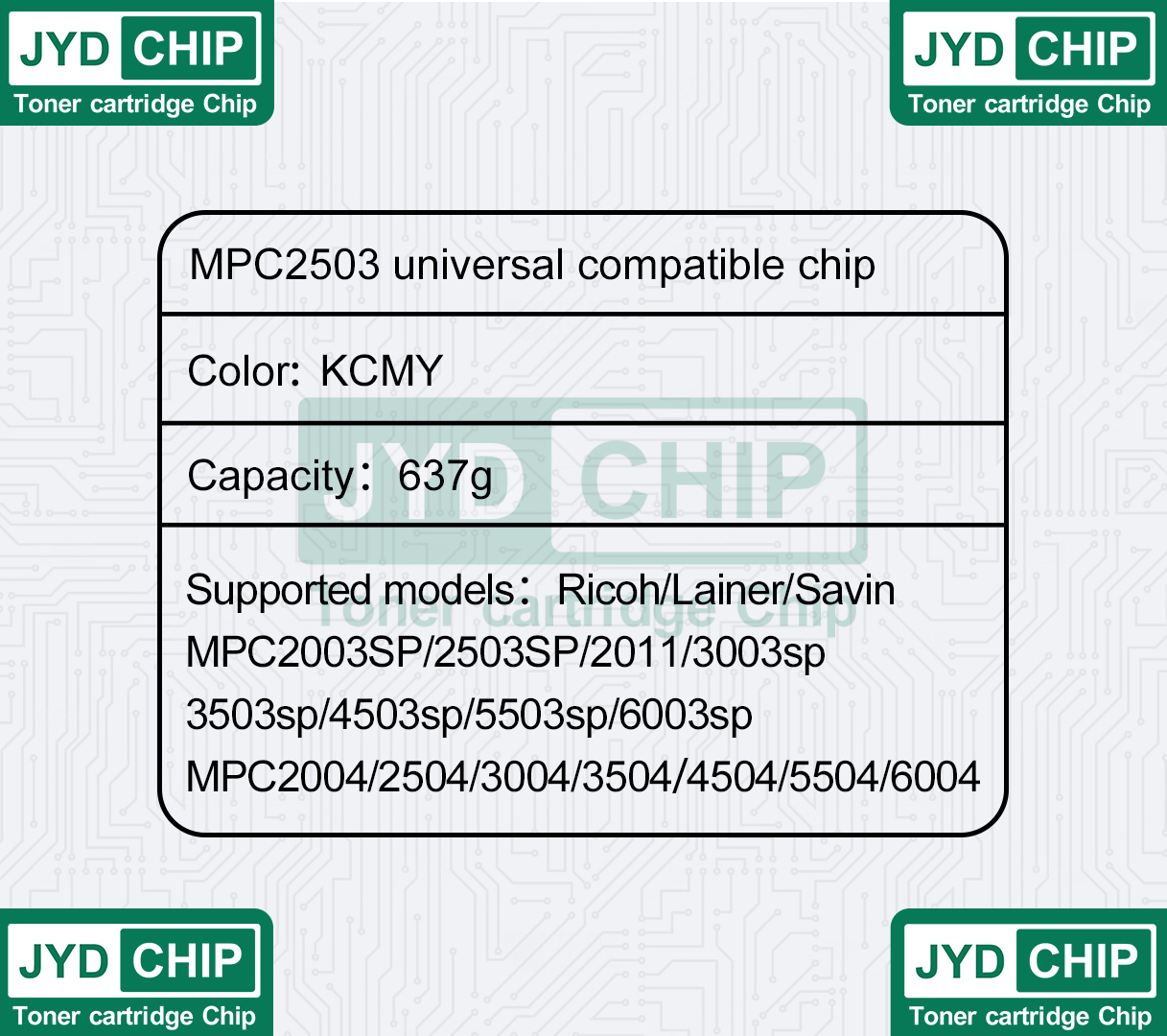

When using the new MPC2503 universal compatible chip on Ricoh C2011 copier
What should we pay attention to?
What should we pay attention to?
1.Let's briefly introduce the working principle of this Ricoh C2011 copier？

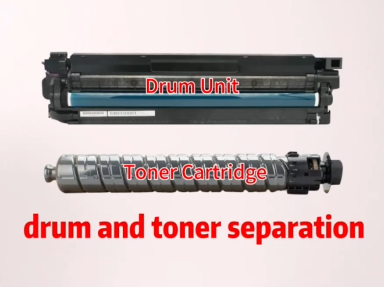

This copier adopts drum and toner separation design.
This copier adopts drum and toner separation design.
（Step 1）

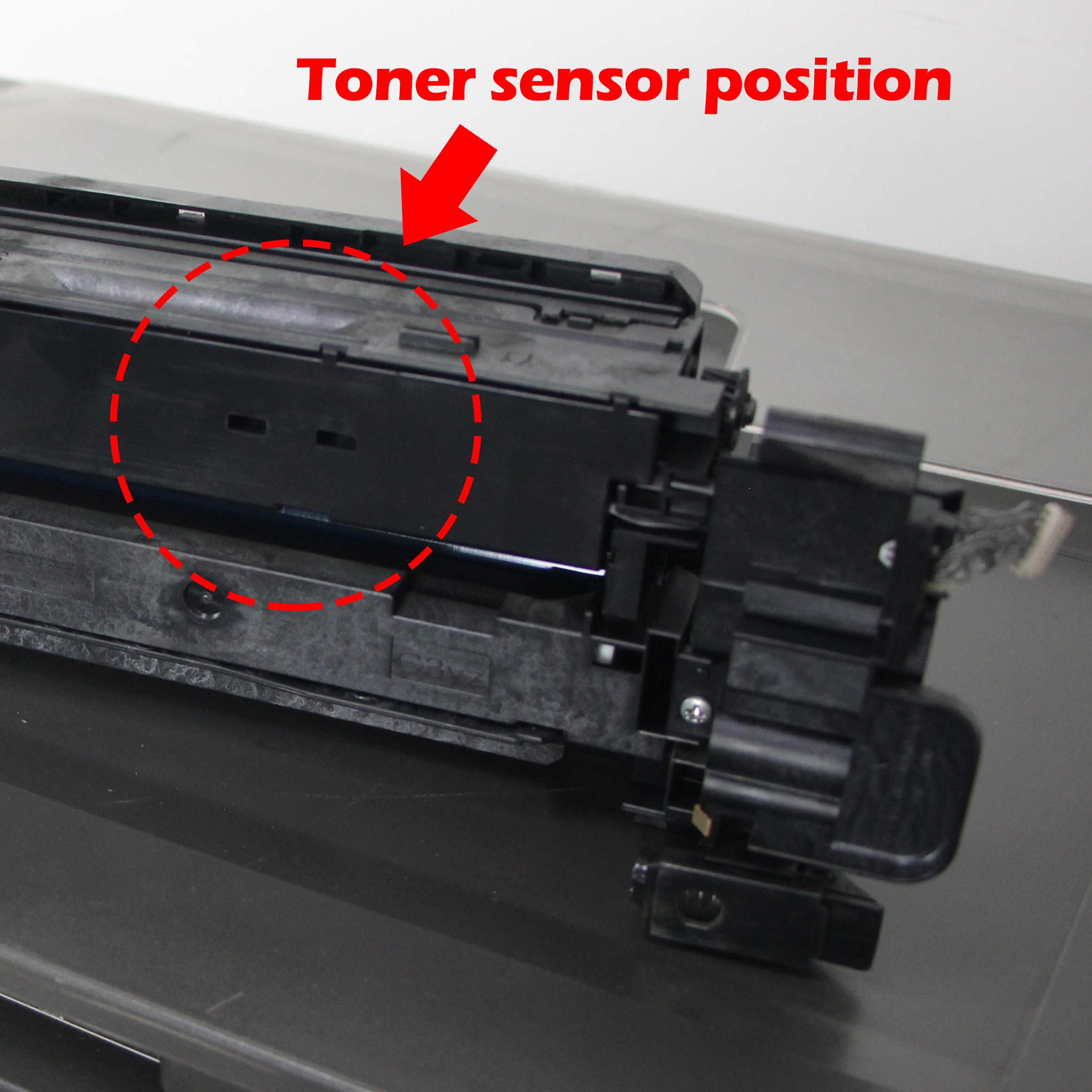

In daily use,The toner levels is controlled by a "toner sensor" in the drum unit,upgrades to the printer firmware
"Toner sensor" senses there is no toner in the drum unit,The machine will replenish the toner from toner cartridge to drum unit
*If the replenishment is successful, the machine will work properly *If the replenishment fails, the machine will report an error
（Step 2）
2.What should be paid attention to when the chip is used?
*First of all, the application model of the chip should correspond to the machine
*You can refer to our JYD model list.
*You can refer to our JYD model list.
（Step 3）
*Secondly, make sure that there is enough high-quality toner in the toner cartridge,Prevents chip data be damaged due to unsuccessful replenishment toner.
*We also need to pay attention to the installation direction of the chip;To prevent the damage to the contact point of the chip;
If there is poor communication, the chip cannot be recognized.
If there is poor communication, the chip cannot be recognized.

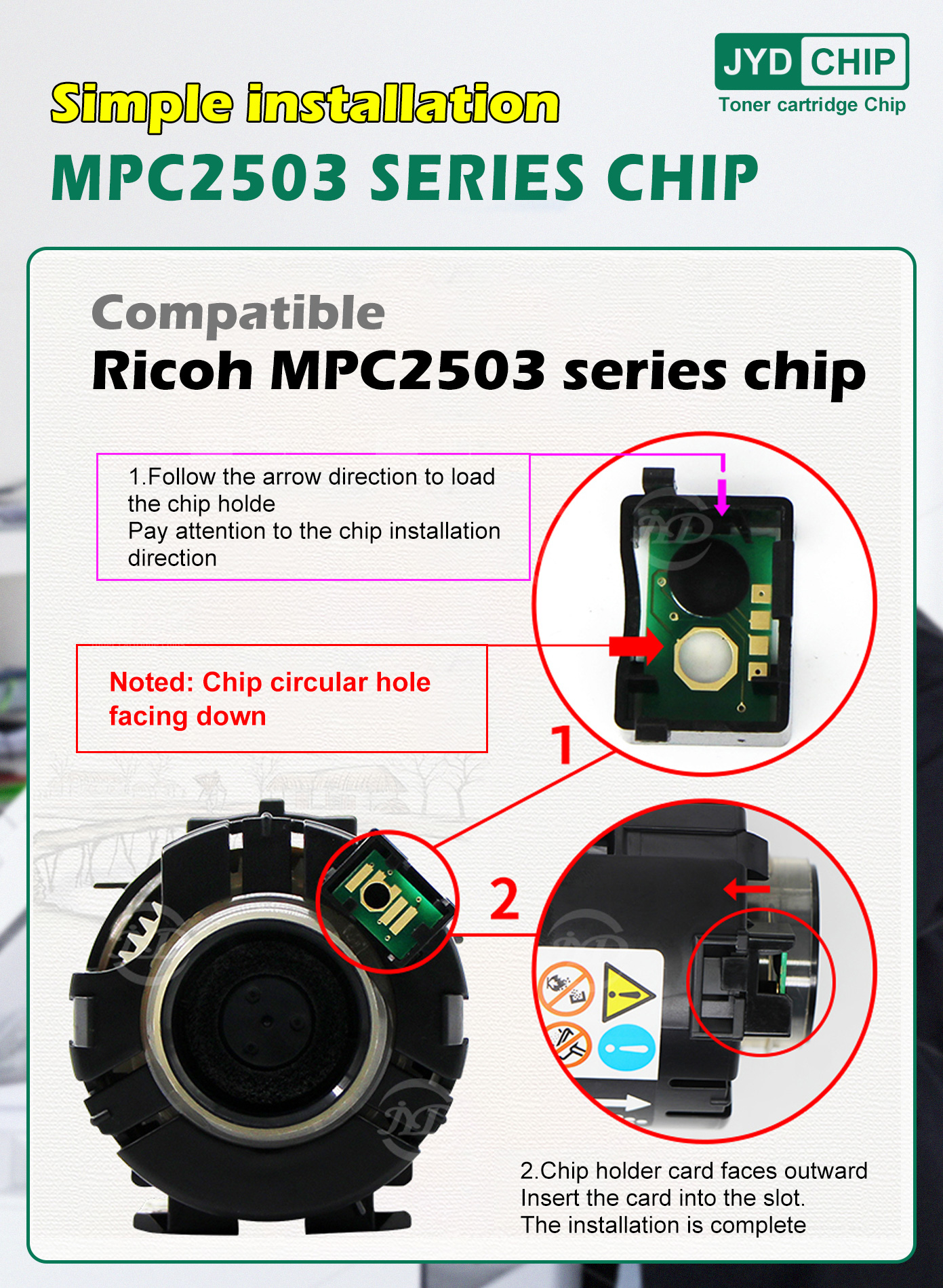

*At the same time, you can refer to our JYD installation drawings
（Step 4）
*We also need to pay attention to the installation direction of the chip;To prevent the damage to the contact point of the chip;
If there is poor communication, the chip cannot be recognized.
If there is poor communication, the chip cannot be recognized.
*If toner replenishment not smooth,will damage the chip. Even damage the internal device.
Do you also know what you need to pay attention to when using this universal compatible chip of MPC2503?
Please see the video below：
