How to install Xerox CP305 printer drum chip?
How to install Xerox CP305 printer drum chip?
1.Installation steps

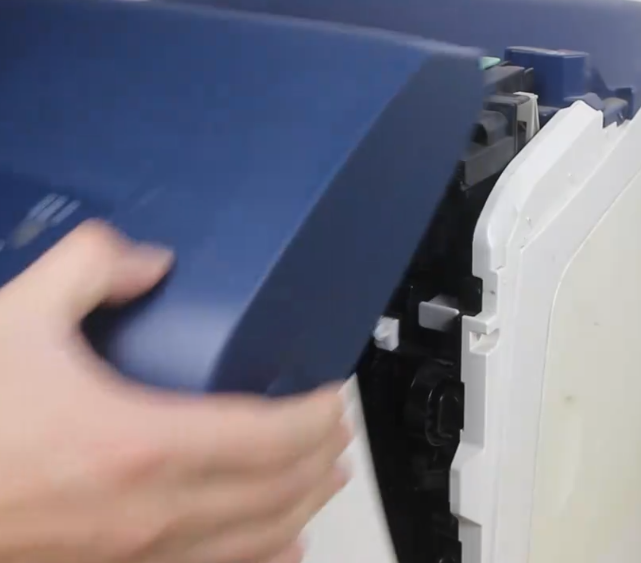

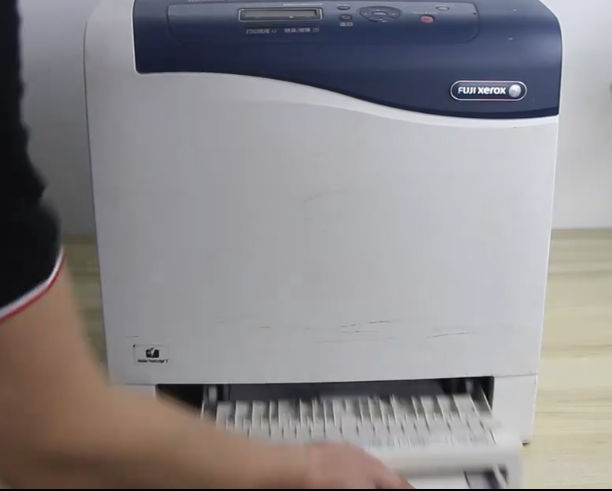

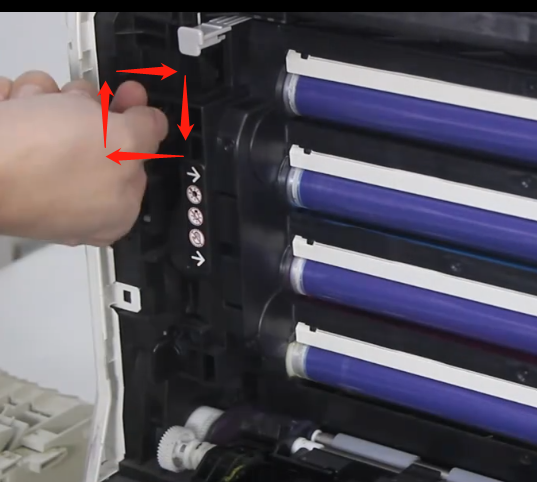

*First pull out the paper tray in the bottom,open the printer front cover,find out the 4 locking levers,twist it by 90 degrees in anticlockwise direction,untill it is loose status
(Step 1)
(Step 2)
(Step 3)

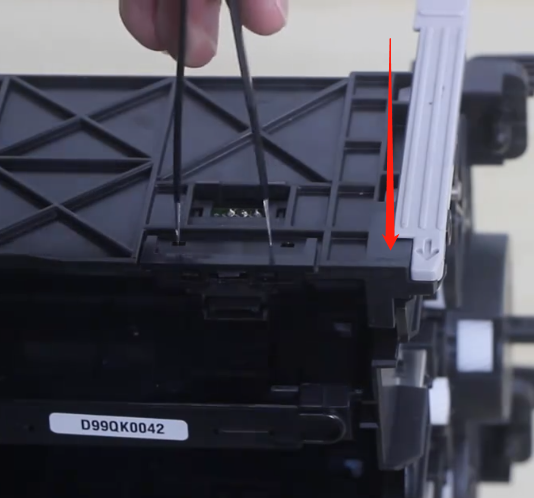

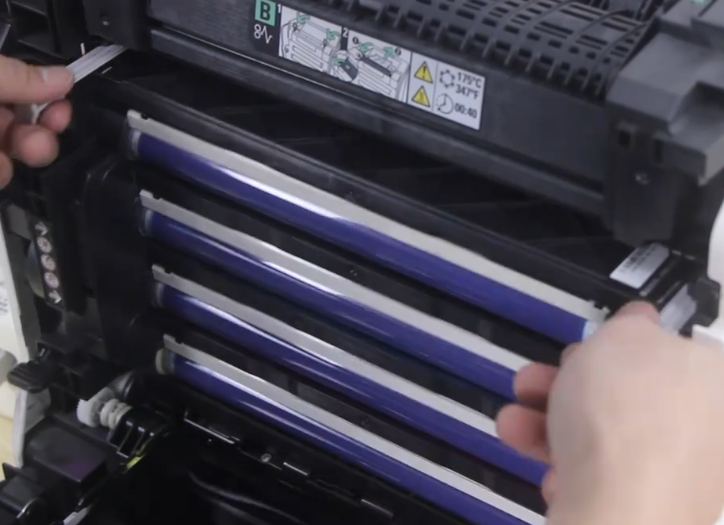

*then you can take out the drum unit,now remove the chip buckle first,prize the hole slightly with a tweezers,the chip buckle is removed now
(Step 1)
(Step 2)
(Step 3)

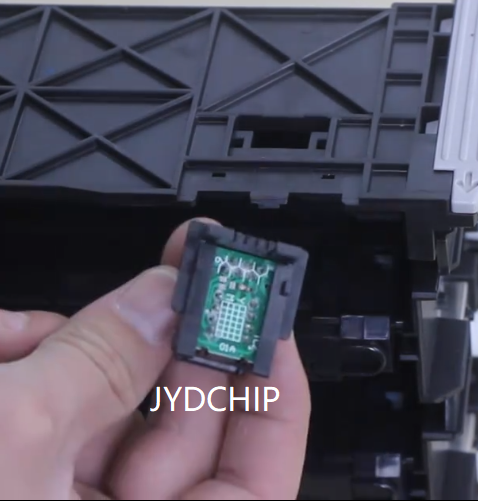

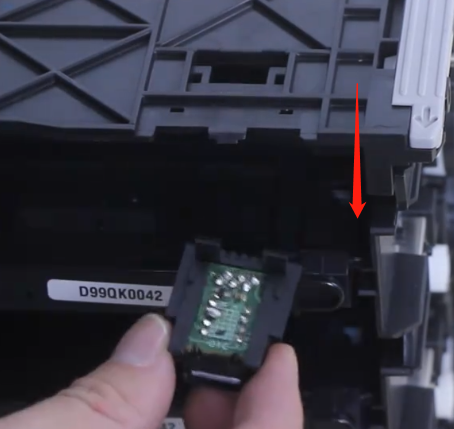

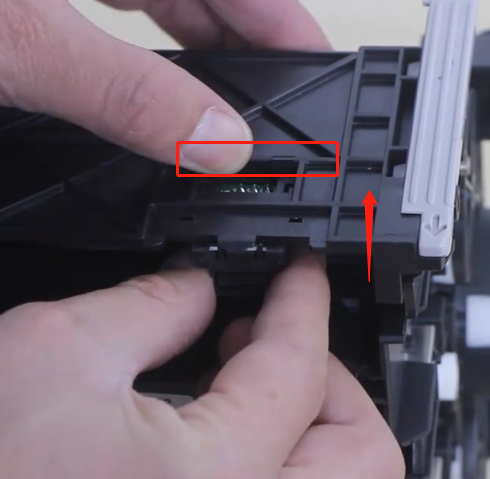

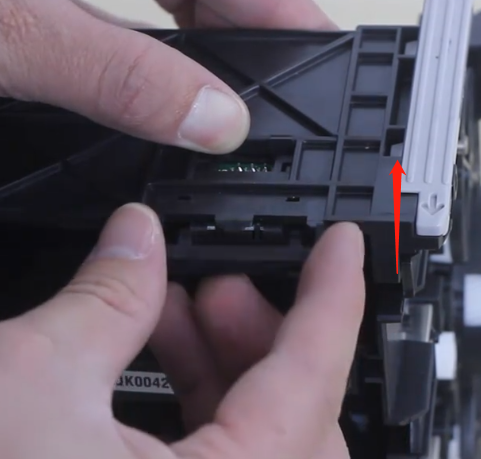

*then you can take out the drum chip,replace it with a new JYD drum chip;firstly fix the back side of chip,withstand there by your hand,then install this chip buckle,
aim at the position and get the chip stuck firmly,the chip is installed successfully.
(Step 1)
(Step 2)
(Step 3)
Note:Ten push the drum unit into the printer slot,close the front cover of printer,lastly put back the paper tray,
now we finish the installation of the drum chip
3-To learn more about the installation steps
Please see the video below:
