How to change the Samsung CLT-406 series printers drum chip?
How to change the Samsung CLT-406 series printers drum chip?
1-This compatible drum chip adopts new technology, no soldering troubles, installation is also very convenient, and used very well. The appearance is slightly different from the original chip.The printing effect is already perfect.
2-Detailed process:
1.irst we open the printer cover,Introducing the inside of the printer:This is the toner cartridge\This is the waste powder bin\his is the drum unit;
The process is to take out the four toner cartridges,Then take out the waste powder bin,Finally take out the drum unit.
(Step 1)
(Step 2)

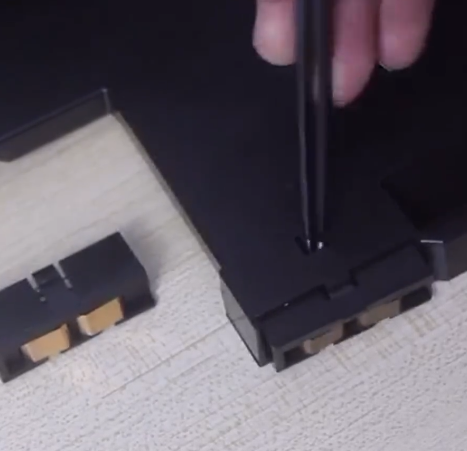

2.Find the drum chip position,Gently pry the card position and remove the old chip,Take a new JYD chip without soldering troubles;

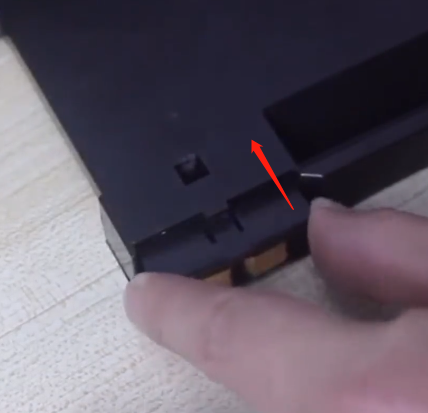

Push along this card slot,Push to the card position.The chip installation is finished.
(Step 1)
(Step 2)
Note:Now put the drum unit back.Then put the waste powder bin back,And put the toner cartridge back,When install the 4 toner cartridges,Pay attention to the corresponding of the colors,Close the cover of the printer.
3-To learn more about the installation steps
Please see the video below:
Learn more about official consultation and chip features
