How to install the Samsung CLT-406 series printers compatible toner chip?
How to install the Samsung CLT-406 series printers compatible toner chip?
1-The compatible cartridges and chips adopt new technology, and the appearance is slightly different from the original product;
In terms of printing effect, the technology is mature, making no differenceIt is also very convenient to install and use.
For more information, please contact us!
2-Detailed process:

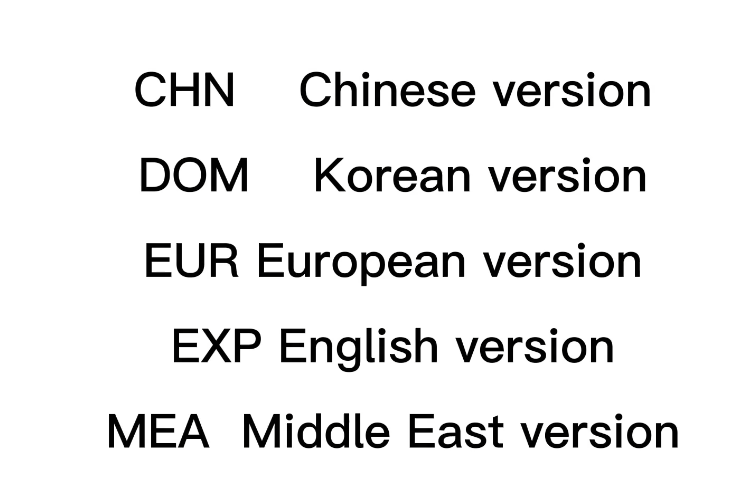

1.Firstly, confirm the version of the chip,The chip versions are divided into:CHN,DOM, EUR,EXP,MEA;Region of five versions,The chip version shall be consistent with the machine;
The specific region, as shown in the figure:
(Step 1)
2.Next, I will show you how to install the chip:

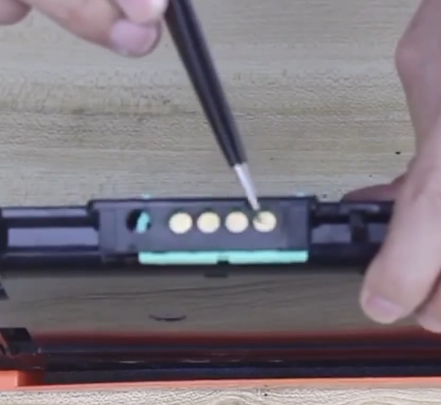

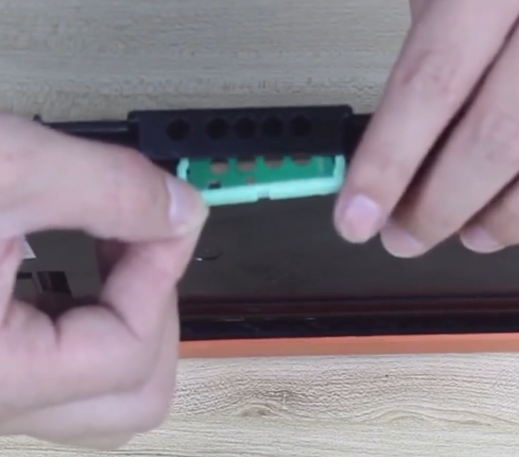

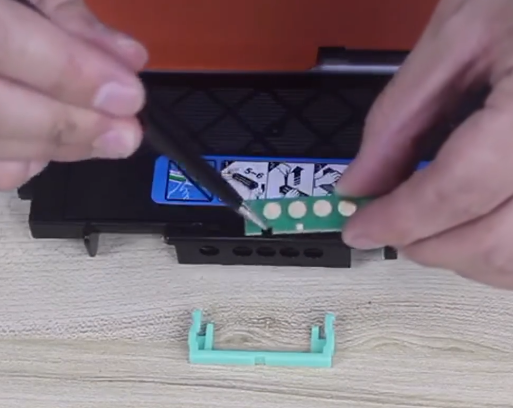

Get a new JYD chip,chip's notch face down,Put it in this slot,Follow this card slot,Push to the state where the chip is locked,The chip is installed.
(Step 1)
(Step 2)
(Step 3)
Note:Chip installation position of compatible toner cartridge,The four hole locations on the right are used,The leftmost hole is empty
3-To learn more about the installation steps
Please see the video below:
